Easy to install 2nd stage meter box connection kits for domestic gas meter boxes

Sperryn 2nd stage meter box kits are designed with the installer in mind – allowing you to connect them quickly and safely.

Easy to fit Semi-Concealed Meter Box Connection Kits are the SMART way to install smart meters. They are highly flexible, allowing connection to a wide variety of semi-concealed meter boxes.

Sperryn also offer a wide variety of kits to install on any traditional gas meter box. Please contact Sperryn about any requirements you may have.

Each of the inlet kits includes the long established Sperryn G940 MK3 Regulator.

Semi-concealed Box 2nd Stage Kit

All-in-one kit designed to be used on flat installed, semi-concealed meter boxes.

More Information

Outlet Options

¾” BS746 Outlet kit for a Dry box

1” BS746 Outlet kit for a Wet box

Semiconcealed outlet 1inch

22mm Copper compression Outlet kit for a Dry box

Recessed & Surface Wall Mounted Box 2nd Stage Kit

Designed for use on vertical meter boxes, recessed into the wall or surface mounted.

More Information

Choose between a kit with an inlet only (for replacement works) or an inlet & outlet kit (for new builds)

Unibox 2nd Stage Kit

Designed for use on vertical meter boxes, recessed into the wall or surface mounted.

More Information

Choose between a kit with an inlet only (for replacement works) or an inlet & outlet kit (for new builds)

Do you need a bespoke kit?

If you need a bespoke kit with labels, add-ups or branding get in touch

Why choose Sperryn’s 2nd stage meter box kit?

1. The meter bracket has been specially designed to work in all meter boxes and ensures a BS6400 compliant installation. This provides increased confidence that the solution will address all box types without having prior knowledge of the installation.

2. Low profile elbows ensure a compact size envelope and combined with a flexible joint ensures less manual effort for the installer to manipulate the flex hose, reducing time and associated health and safety issues.

3. The compression connection on the outlet kits for dry boxes means there is no requirement to solder several joints, again reducing time, particularly when experiencing inclement weather conditions.

4. Also, a common issue relating to flux corrosion within the meter installation will be eliminated, reducing health and safety concerns post-installation and re-visit costs.

5. Connect Lid enclosure – New Easy to fit kit ensures lid closure even in the most challenging box types including Connect and Wet boxes.

6. Pressure drop tested in compliance with BS6400.

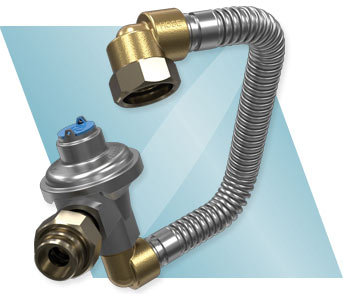

Articulated Hoses

Installation Instructions


Before – Soldered Joints


  • 10 soldered joints
  • 10 possible leak paths
  • Potential solder and flux damage to meter and entire installation

After – Convoluted Easy to fit Hoses


  • First time connection
  • Leak proof
  • Ensures closure of lid

Sperryn G940 Regulator

The G940 domestic regulator offers high performance in a compact unit.

Approved to British Gas Industry specification PRS/3E and the EN88 European standard.

G940 Domestic Regulators
G940 Regulator
